Description

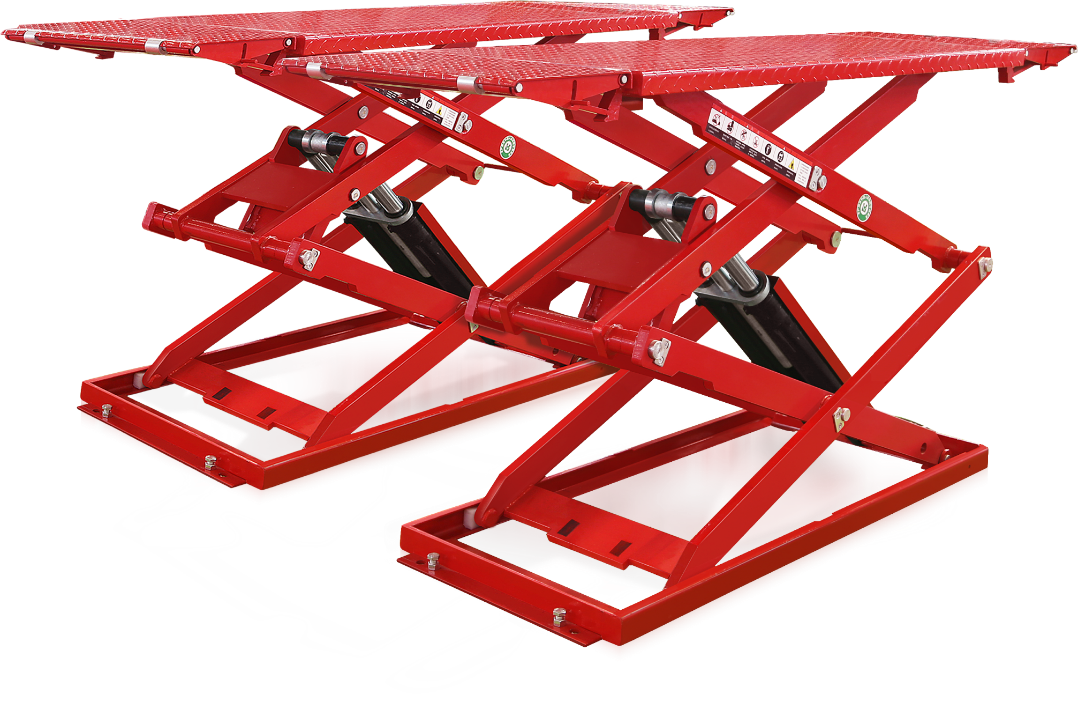

The V-JSXB-A-3530 is an ultrathin surface mount scissor lift featuring a minimum height of 105mm to occupy minimal space. It is equipped with imported Italian hydraulic pump valves and electrical components for reliability. The system utilizes a double cylinder drive for safe and stable synchronization and includes a one button adjustment for balance and upper return oil to prevent cylinder rust. Technical specifications include a 4000kg lifting capacity with a maximum lifting height of 1850mm and a lifting time of 70 to 90 seconds. The platform measures 1450mm in length and 635mm in width. It is powered by a 3.0kw motor available in 380v or 220v configurations with an oil pressure rating of 24MPa and air pressure requirements of 0.6 to 0.8MPa. Total equipment weight is 850kg.
